Clariscan Domed Scanning Sonar a ‘Game Changer’
-
Kongsberg Mesotech sales manager Daryl Morse at Oceanology International in March 2016 (Photo: Eric Haun)
-

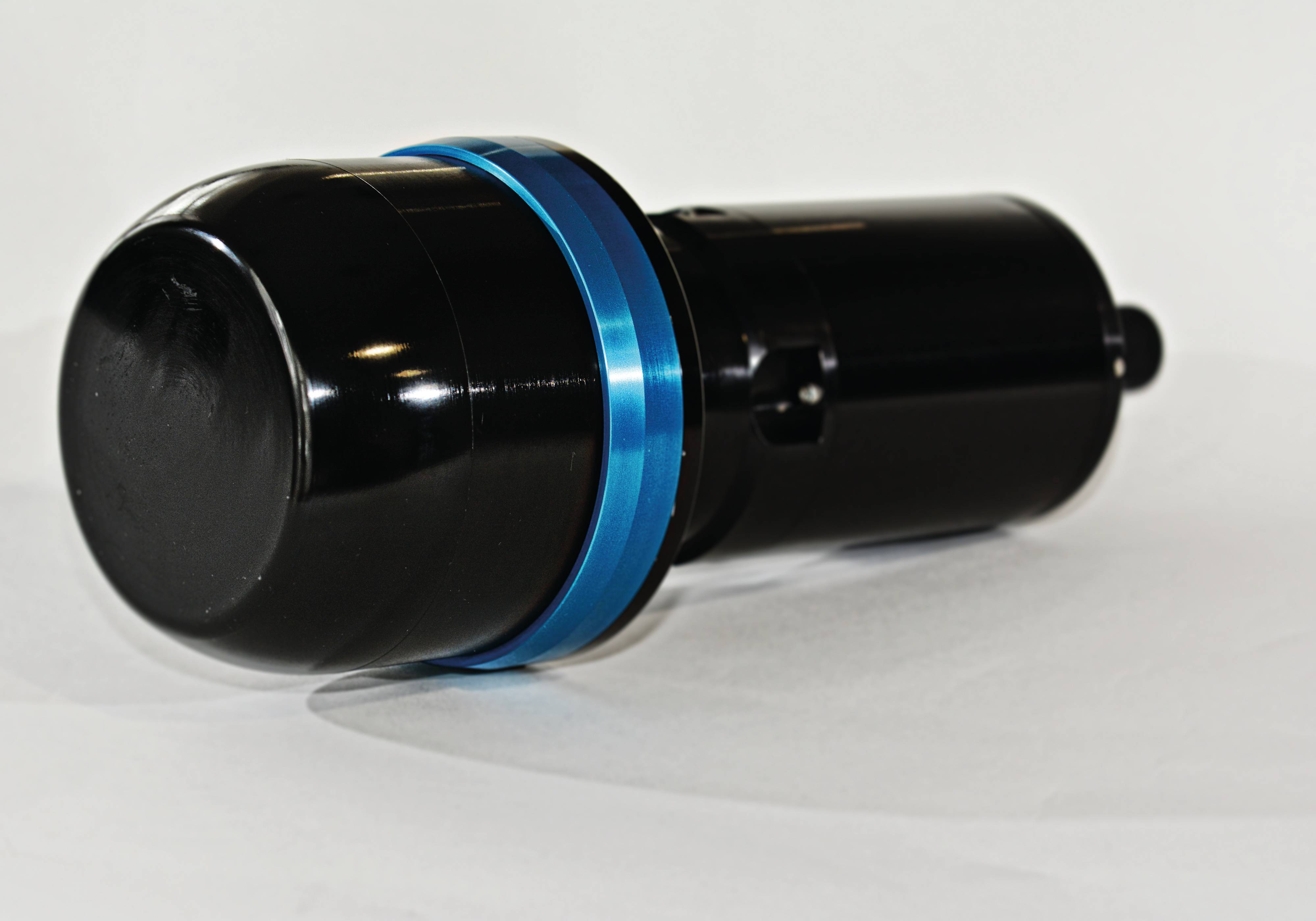

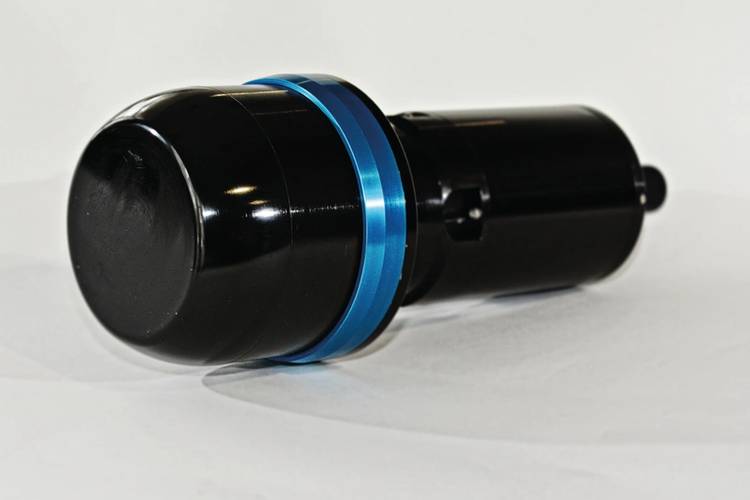

Clariscan offers the same protective attributes of standard domed transducers without the traditional loss in performance and image clarity. (Photo: KONGSBERG)
-

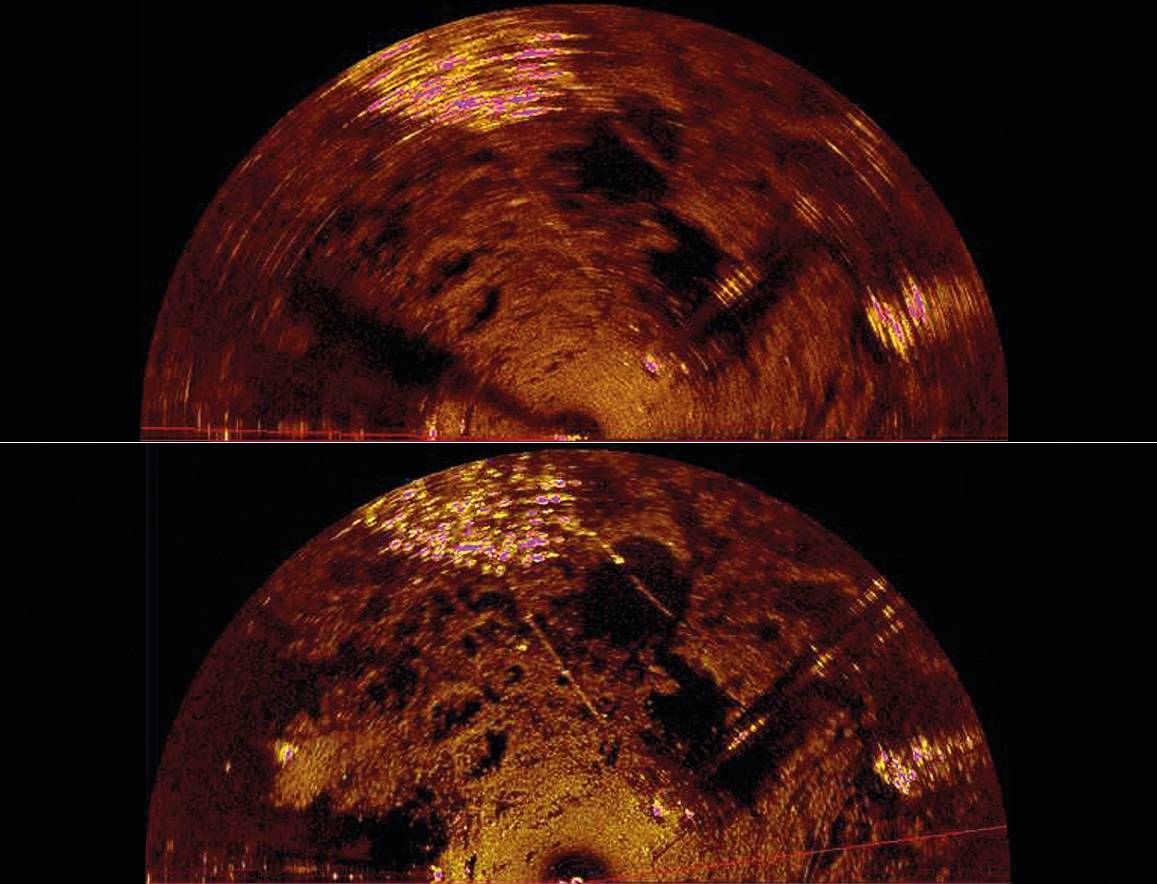

Top image: acquired with a standard domed scanning sonar and shows less detail. Bottom image: acquired with Clariscan is clearer and more detailed than a standard domed scanning sonar (Image: KONGSBERG)
KONGSBERG’s new Clariscan Domed Scanning Sonar is now ready for order, offering the protective attributes of standard domed transducers without the traditional loss in performance and image clarity.
Domed sonars introduced in the 1990s used enclosed transducers in an oil-filled dome to provide mechanical protection and eliminate flooding due to O-ring failure on the exposed transducer shaft. While the oil-filled dome solved the O-ring flooding failures, it introduced beam defocusing in two conditions: warm and shallow as well as cold and deep. The beam defocusing effect reduces image clarity and becomes more extreme in cold deep water as depth increases. Until now, there has been no solution to this problem, aside from using a high-resolution scanning sonar head.
KONGSBERG said its engineers have solved this problem by designing a patented acoustic lens that maintains beam focus through the entire operational temperature and depth range, significantly improving sonar performance and resulting in images that are much sharper. The Clariscan acoustic lens behaves like an optical contact lens, correcting the refraction caused by the oil in the dome.
Clariscan combines wide bandwidth composite transducer technology developed by Kongsberg Maritime’s Canadian subsidiary Kongsberg Mesotech, with a patented acoustic lens to provide exceptional image quality.
The new sonar was introduced earlier this year at Subsea Expo in January, Underwater Intervention in February and Oceanology International in March.
“Our 1171 4,000 m depth-rated sonar already performed very well with the monolithic transducer, but with the addition of the wide-bandwidth composite transducer and acoustic lens, the image quality is exceptional,” said Daryl Morse, Sales Manager at Kongsberg Mesotech. “The acoustic lens is one of the most significant enhancements in the history of scanning sonar. It’s a game-changer.”
Deep water testing in the Gulf of Mexico has shown the clarity of images produced by the Clariscan compared to a standard 1171 domed sonar with composite transducer. The two sonar heads were mounted side by side on the remotely operated vehicle (ROV) and thus exposed to the same temperature, pressure and salinity conditions, and were operated simultaneously during image capture. The image quality of the Clariscan sonar unit is clearly superior, rivaling a high-resolution scanning sonar head.
KONGSBERG is taking orders of the Clariscan Domed Scanning Sonar and the new units are going into production effective immediately.
