HYPACK Integrates the Diver6
-

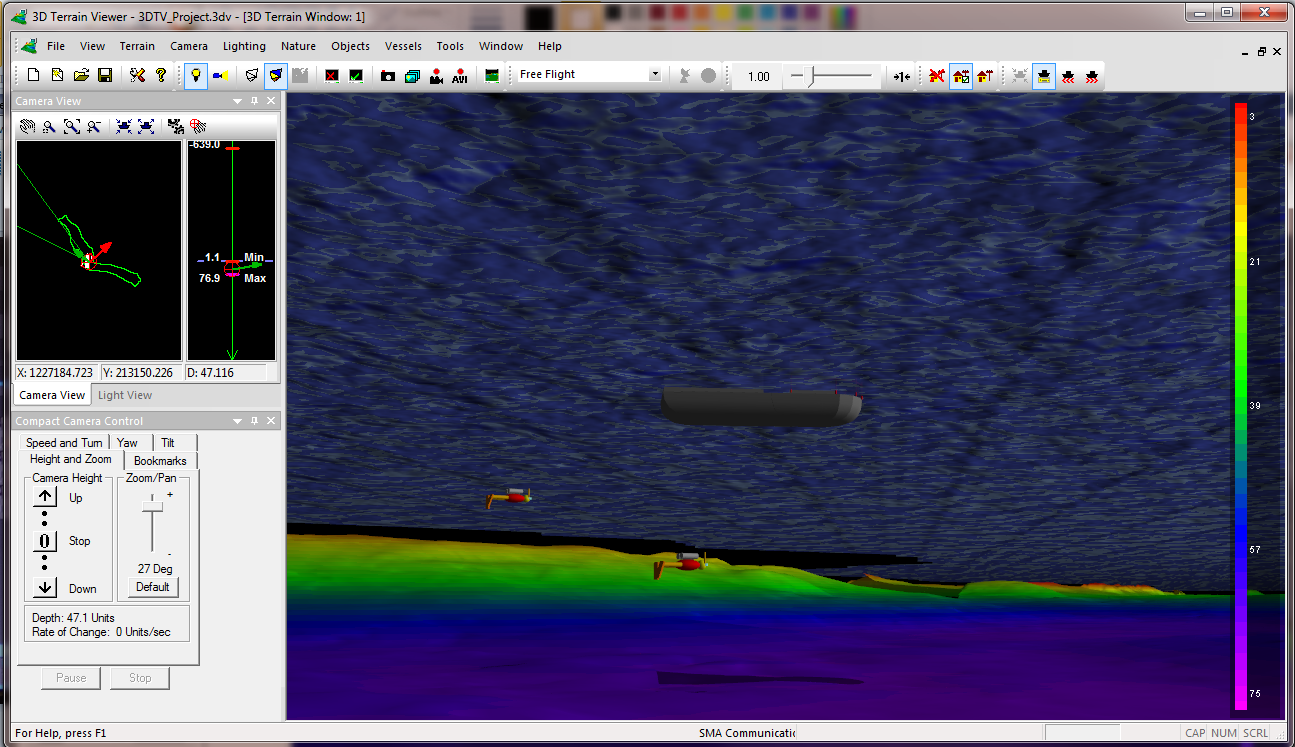

This screen capture is 3DTV, showing divers in 3-D space. This takes the diver and vessel information from HYPACK SURVEY and displays the "mobiles" using 3D symbols. We have a simple diver symbol (shown in the picture). A XYZ surface is necessary to run this program.
-

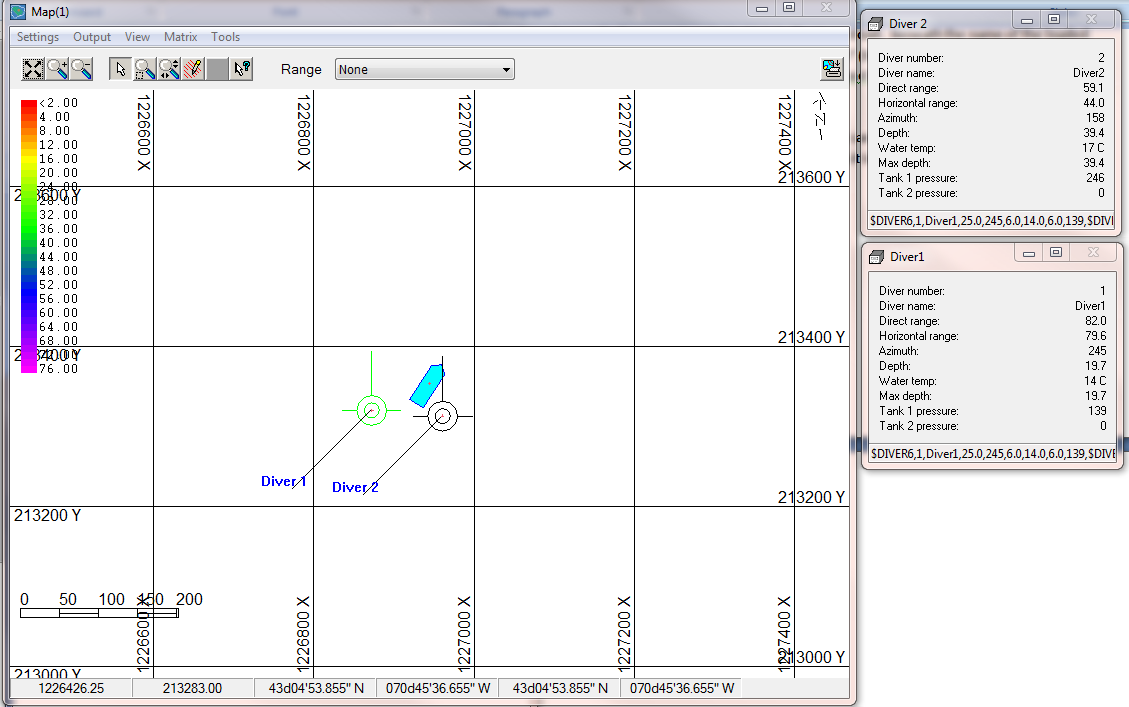

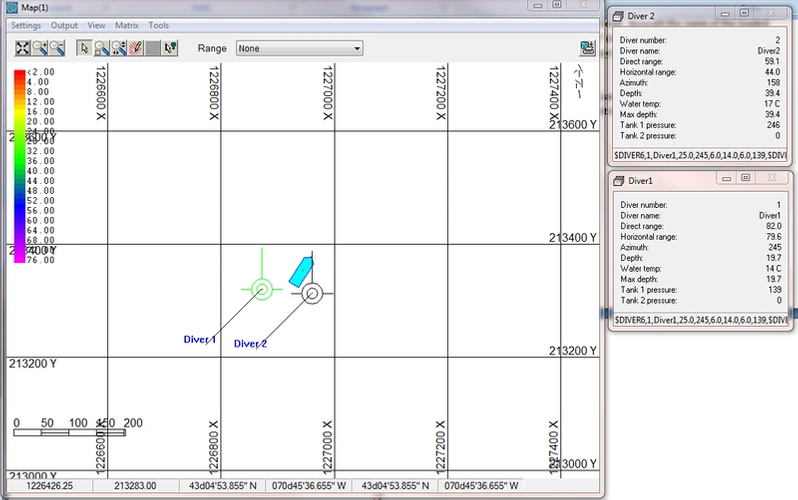

This screen capture shows 2-D Map window from HYPACK SURVEY, showing support vessel and diver locations. Each Diver has their own information window (right).
HYPACK, Inc. informs it has recently finished testing the Diver6.DLL using a simulator and reading the network datagrams into HYPACK.
HYPACK takes vessel position and heading and applies the information in the datagram to determine the diver location in 3D.
The screen captures demonstrate the integration.
February 2025
