Ørsted, WWF Denmark Deploy 3D-Printed Reefs at Danish Offshore Wind Farm Hoping to Restore Cod Stock

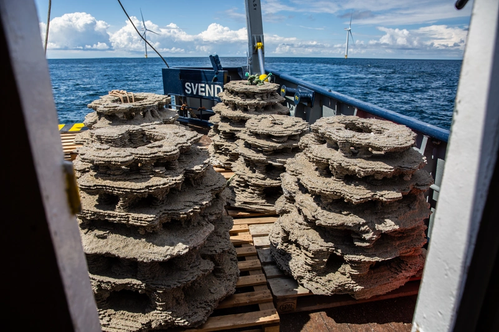

The reefs are about one cubic meter big and vary in width and weight to best imitate natural habitats and weigh up to half a ton. Credit: Ørsted

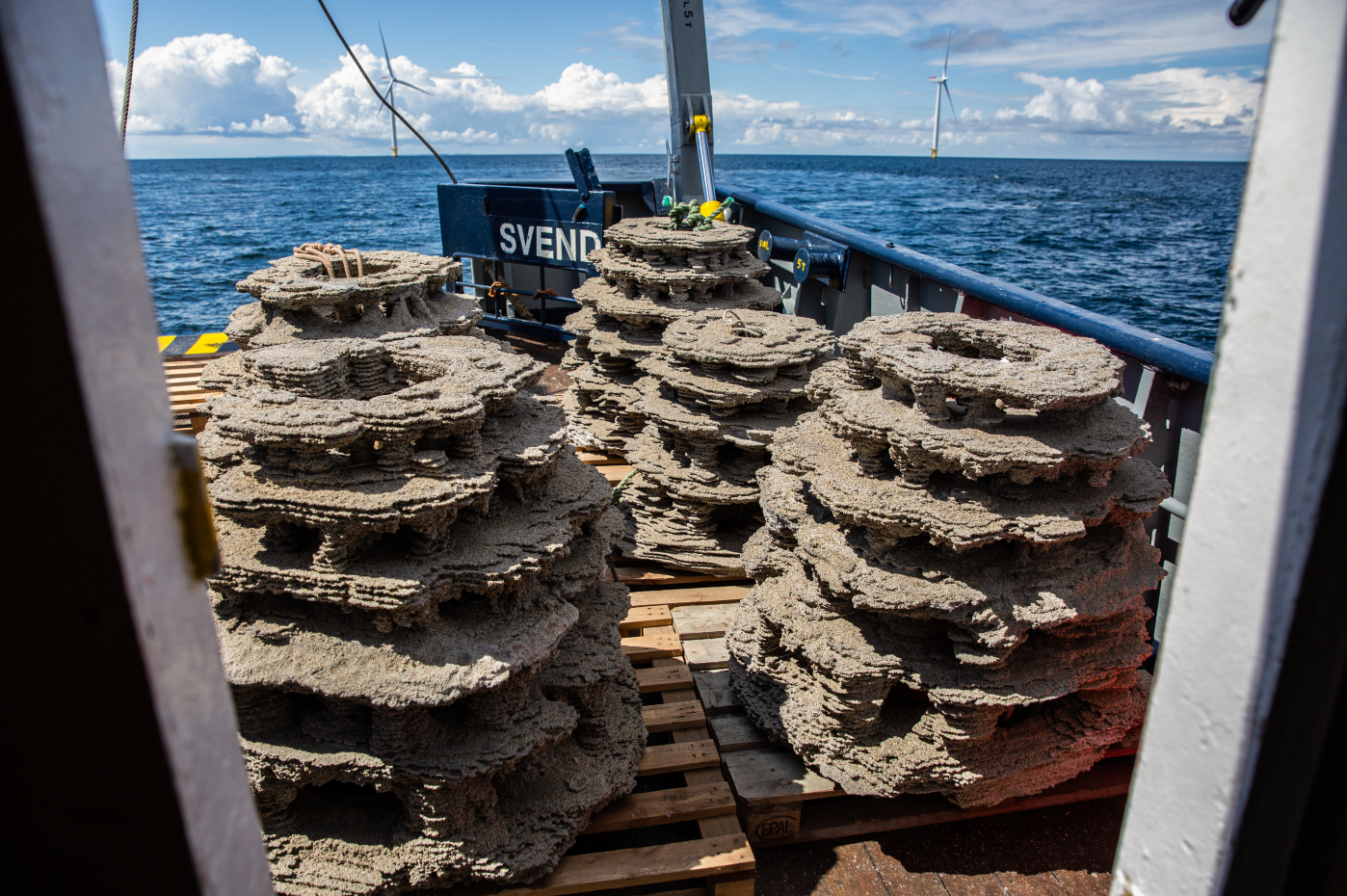

The reefs are about one cubic meter big and vary in width and weight to best imitate natural habitats and weigh up to half a ton. Credit: Ørsted

Offshore wind developer Ørsted and the World Wide Fund for Nature Denmark are testing how 3D-printed reefs installed between offshore wind turbines can benefit biodiversity in the Kattegat, a strait between Denmark and Sweden, which is experiencing a historically low cod stock.

"This is the first time 3D-printed reefs are used in Danish waters, and they will complement existing boulder reefs that Ørsted established when constructing the Anholt Offshore Wind Farm in 2012-13," Ørsted said.

Ørsted and WWF have deployed 12 3D-printed reef structures on the seabed between the wind turbines at Anholt Offshore Wind Farm in the Kattegat, which is part of the Greater North Sea ecosystem.

"Among other things, overfishing, increasing oxygen depletion, and habitat loss have resulted in a decline of the cod stock in the Kattegat for the past 20 years. It is now alarmingly low. This creates a negative domino effect in the Kattegat ecosystem, impacting biodiversity and the marine ecosystem’s resilience against climate-driven changes," Ørsted said.

The two partners behind the project hope that it will have positive effects on the Kattegat cod stock and in turn contribute to a healthier, more resilient marine ecosystem with improved biodiversity,Ørsted said in a statement on Monday.

Credit: ØrstedBo Øksnebjerg, Secretary General, WWF Denmark, said: "Marine biodiversity in Denmark is under heavy pressure, and today there are 90 % fewer cod in the Kattegat than in 1990. Action is needed – and urgently. We must give nature and wildlife a hand, while trying to solve our climate crisis by expanding our renewable energy production at the same time. To solve the nature crisis, we must leave nature in better shape than before. That’s why we’re very excited that we, together with Ørsted, can test the new, unique 3D-printed reef structures here in Denmark for the first time.”

According to the statement issued Monday, cod is an important top predator, meaning it preys on other marine species and contributes to maintaining the balance in the marine ecosystem.

"When cod gets greatly reduced in numbers, the abundance of their prey – such as the green crab – will grow. As a result, seagrasses decline because the crabs eat both the seeds of the eelgrass and many of the snails that themselves keep the eelgrass free from being overgrown with algae. This is a problem, as eelgrass is itself of great importance for both biodiversity and the climate. It provides important habitats for marine life, such as juvenile fish, it produces oxygen, and it stabilises the seabed. Crucially, eelgrass also very effectively stores carbon in its root network, preventing it from ending up in the atmosphere and contributing to the global temperature rise," the statement released Monday explains.

 3D-printed reefs help cod offshore

The 3D-printed reefs look like a wedding cake consisting of several levels that are connected to each other by hollows where fish can swim in and out of hiding places. At the same time, the structures themselves will provide surfaces and crevices where other organisms can attach. The reefs are about one cubic meter big and vary in width and weight to best imitate natural habitats and weigh up to half a ton.

The reefs are made from 70 % sand and 30 % pozzolanic cement made from volcanic ash and portland cement. These are natural materials and will not be harmful to the surrounding environment, even if parts of the reefs should erode over time. The 3D-printed reefs are biocompatible due to the absence of synthetic or toxic substances of industrial origin and the moderately basic pH of the structures at around 8.5-9. Each reef weighs between 200 and 550 kg. The reef structures are produced by the Italian company D-Shape.



"Ørsted has seen how the boulder reefs that the company established when constructing the Anholt Offshore Wind Farm have become attractive oases for other marine species on an otherwise barren seabed. The expectation is that the new 3D-printed reefs can complement the stone reefs and will quickly become inhabited with life. WWF already has experience with 3D-printed reefs from a project in the Dutch part of the North Sea,"Ørsted said.

The project at Anholt Offshore Wind Farm is supported by PensionDanmark and PKA A/S which have a 30 % and 20 % share in the wind farm, respectively.

Torben Möger Pedersen, CEO at PensionDanmark, says: "We’re very proud to see Anholt Offshore Wind Farm pioneer 3D-printed reefs in Danish waters. Biodiversity is a focal point for PensionDanmark, and if this innovative initiative can improve biodiversity in the marine ecosystem, while the wind farm is producing sustainable power, we have a win-win situation for all concerned.”
