A Breakthrough in Hybrid Underwater Vehicles

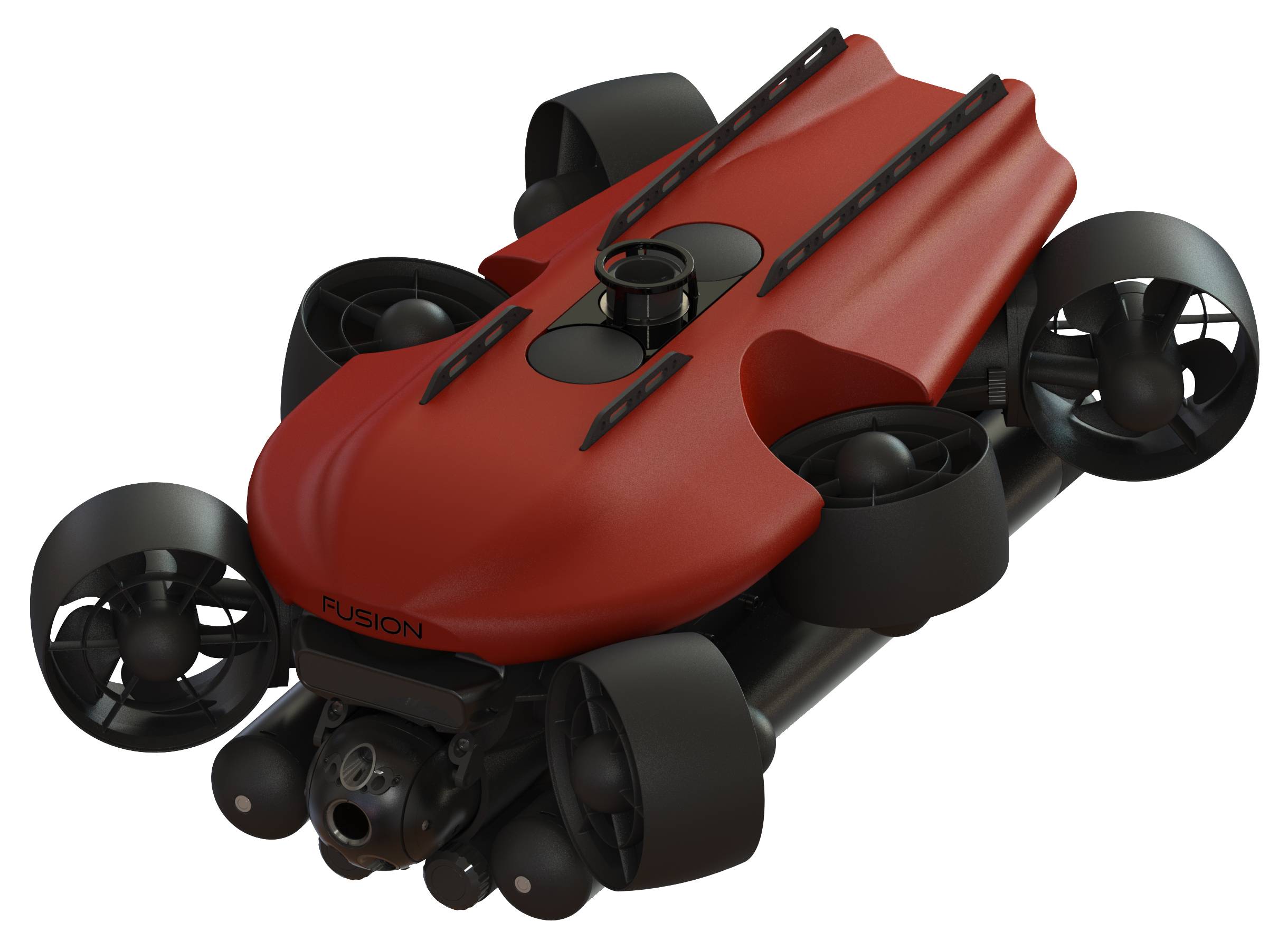

  • The Fusion combines AUV, ROV and diver navigation and propulsion into one system. (Photo: Nortek)

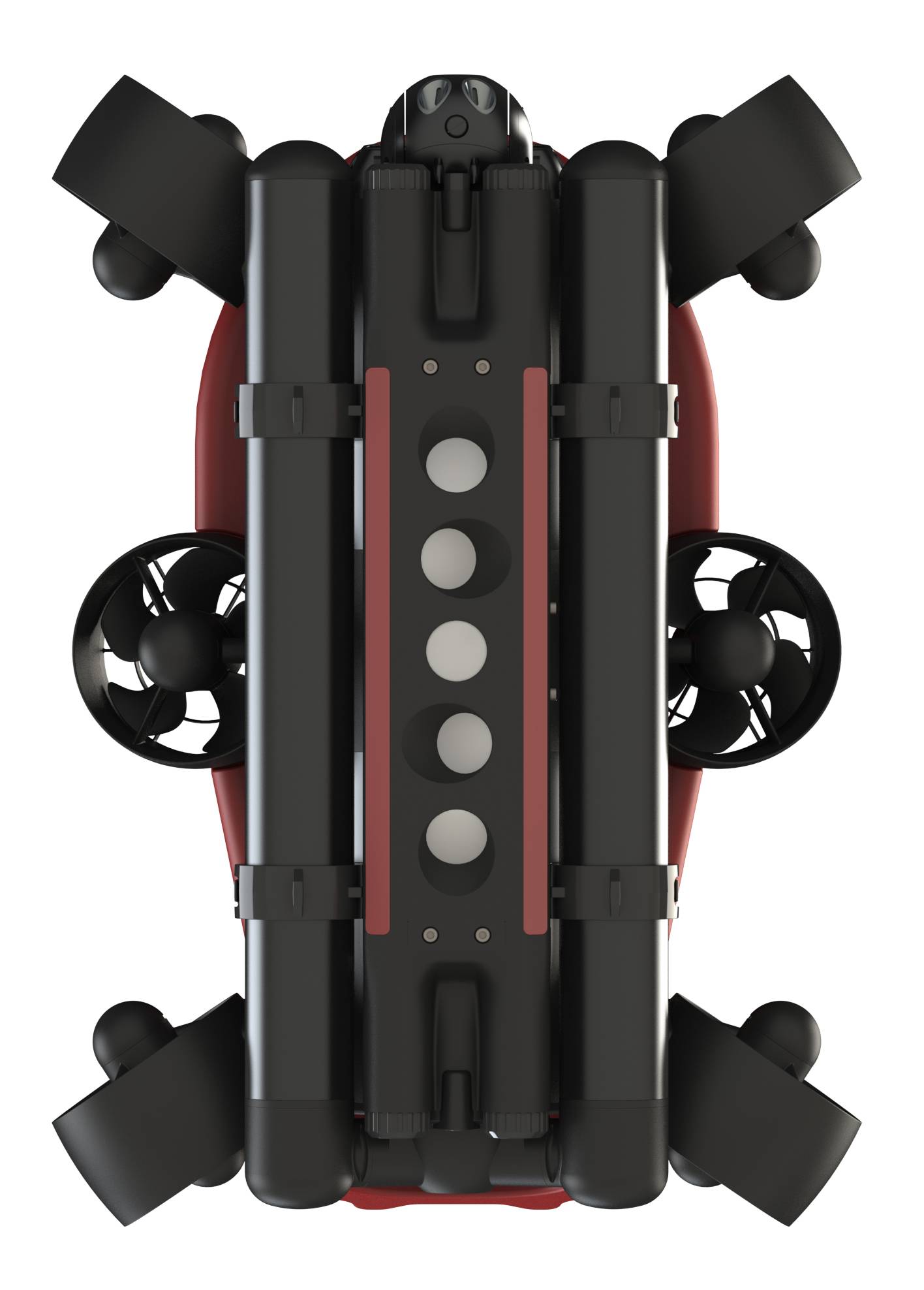

  • ADCP specialist Nortek helped set up underwater vehicle Fusion’s unique transducer arrangement. (Photo: Nortek)

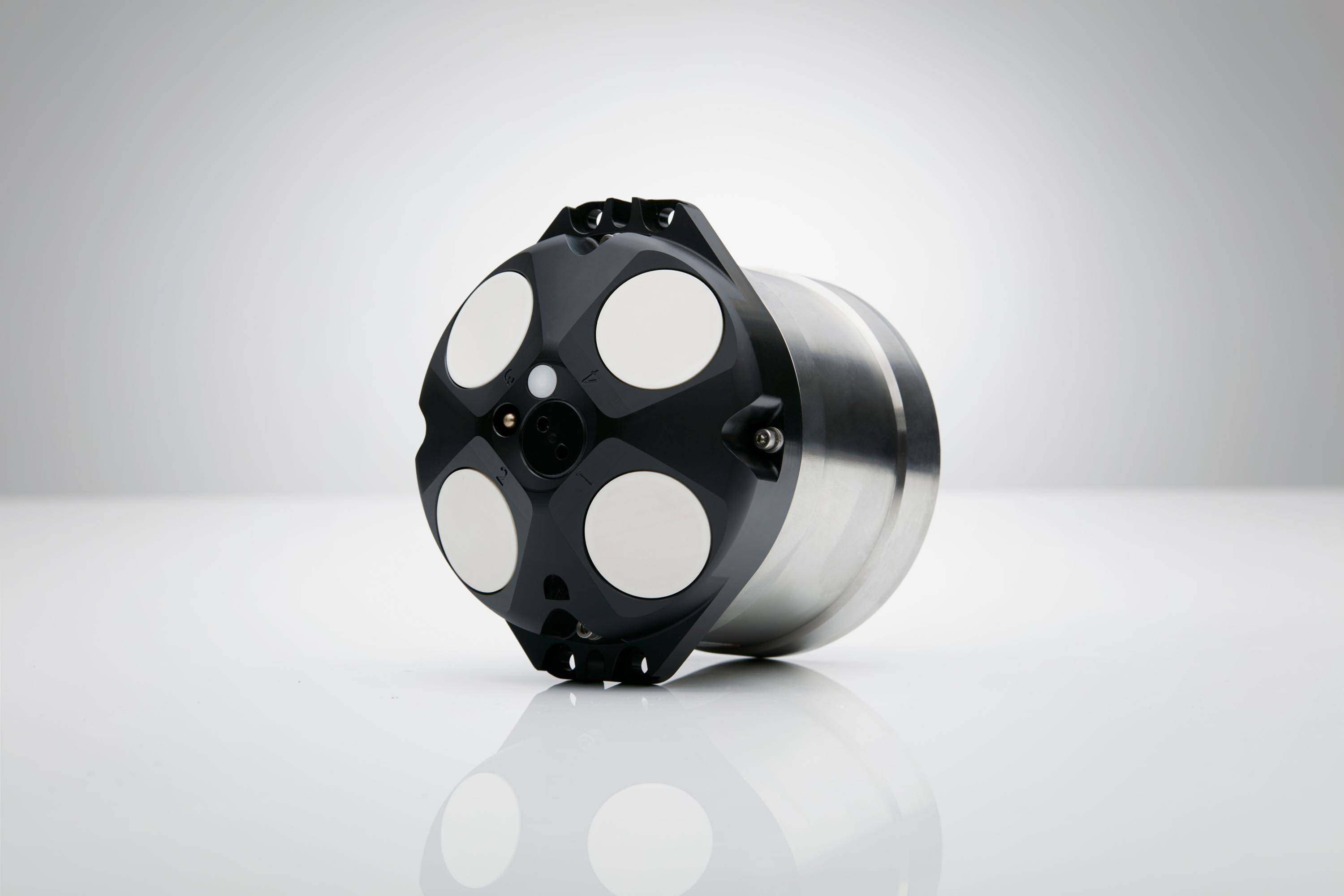

  • Nortek’s 1 MHz DVL is the industry’s smallest DVL, and is easy to integrate and operate. (Photo: Nortek)

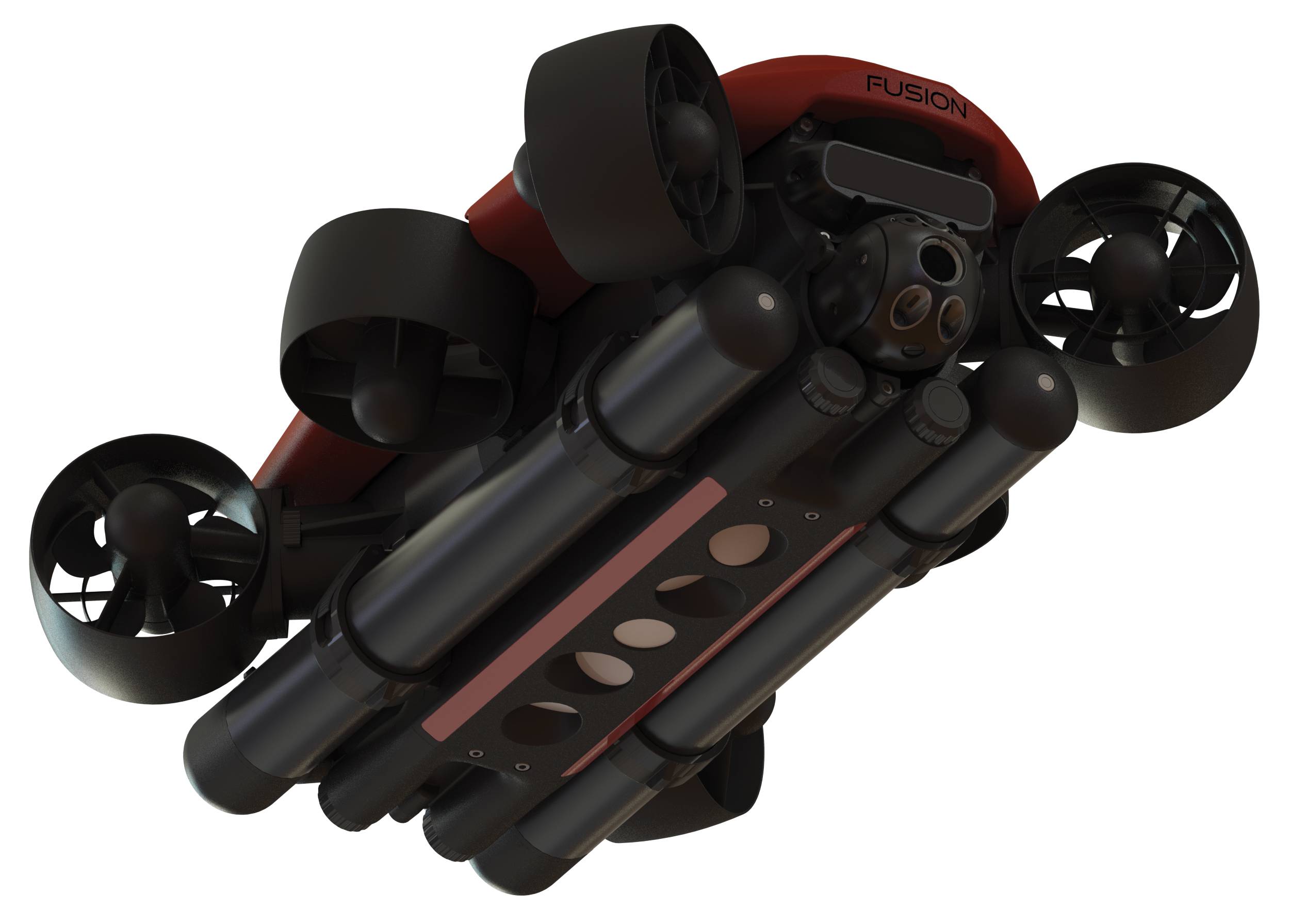

  • Crafty engineering and high-end bespoke DVL sensors from Nortek have produced an underwater vehicle with efficient, capable and robust design. (Photo: Nortek)
  • The Fusion combines AUV, ROV and diver navigation and propulsion into one system. (Photo: Nortek) The Fusion combines AUV, ROV and diver navigation and propulsion into one system. (Photo: Nortek)
  • ADCP specialist Nortek helped set up underwater vehicle Fusion’s unique transducer arrangement. (Photo: Nortek) ADCP specialist Nortek helped set up underwater vehicle Fusion’s unique transducer arrangement. (Photo: Nortek)
  • Nortek’s 1 MHz DVL is the industry’s smallest DVL, and is easy to integrate and operate. (Photo: Nortek) Nortek’s 1 MHz DVL is the industry’s smallest DVL, and is easy to integrate and operate. (Photo: Nortek)
  • Crafty engineering and high-end bespoke DVL sensors from Nortek have produced an underwater vehicle with efficient, capable and robust design. (Photo: Nortek) Crafty engineering and high-end bespoke DVL sensors from Nortek have produced an underwater vehicle with efficient, capable and robust design. (Photo: Nortek)

A collaborative effort has produced a new generation in underwater systems, breaking with tradition by uniquely combining several underwater systems into a single platform.


The Fusion from U.S. manufacturer Strategic Robotic Systems is a breakthrough in hybrid underwater vehicles, combining AUV and ROV capabilities with diver navigation and propulsion – all in one system.

Essential to making this forward leap possible was Norwegian scientific instrumentation company Nortek AS and its Doppler Velocity Log (DVL), as crafty engineering and high-end bespoke sensors have helped to produce an underwater vehicle with efficient, capable and robust design.

Jesse Rodocker, President at Strategic Robotic Systems, emphasized the importance of Nortek’s DVL innovations to making the Fusion possible: “Both the electronics and transducers are smaller and have a better form factor for the Fusion underwater vehicle. The higher frequency for increased accuracy is of huge value for aiding the Fusion’s automated control and navigation system. The added dedicated altimeter provides more accurate altitude directly below the Fusion for better terrain following.”

Nortek’s 1 MHz DVL has a bottom track that ranges from 20 cm to 50 m, and its housing is available with a 4,000 m pressure rating. Even when offering this capacity, it is the industry’s smallest DVL, and is easy to integrate and operate, the manufacturer said.

The Fusion underwater vehicle has a unique in-line transducer arrangement and Nortek has been there to help with this design. Nortek’s contributions included recommendations and minor tweaks to make the vehicle work optimally.

”The Fusion is a real first,” Rodocker said, emphasizing that it is a true hybrid that has extended capability in all modes.

The Fusion breaks with tradition by combining the capabilities of several types of underwater systems into a single platform.

Rodocker explained, “There isn’t a system on the market that combines the AUV, ROV and diver functionality in the same way. Fusion is also really the only system to be built from the ground up with a specific suite of sensors in such a tightly integrated package.”

The specific suite of sensors refers to inclusion of a multi-beam forward-looking sonar, side-scan sonar, USBL, DVL and AHRS. Most other platforms do not include these as standard and are certainly not integrated as tightly as in Fusion. This design makes the Fusion more efficient, capable and cost effective. For example, its design means reduced need for training and greater mission capability.

Strategic Robotic Systems was founded with the premise of developing the next generation in underwater systems by approaching this challenge from a fresh perspective. The company needed a partner with an equally fresh perspective as they were looking for navigation technology to be integrated in their new underwater vehicle.

“One of Nortek’s clients recommended us to work with Nortek because of the new technologies in its portfolio and the company’s ability to collaborate with partner companies. I was struck by Nortek’s progressive, forward-looking thinking and soon found out we had common interests,” Rodocker said.

“The collaboration has been fantastic. The team at Nortek has been very knowledgeable and responsive. There hasn’t been a ‘it can’t be done’ or ‘too hard’ or ‘very expensive.’”

As Strategic Robotic Systems shifts into production and delivery of the Fusion, collaboration with Nortek will continue.

“Who knows what future products might be developed from this fruitful collaboration?” Rodocker concluded.
