Measuring the Load on Jack-up Support Legs

Devices from US manufacturer S. Himmelstein accurately measure torque for control and verification of loads on oil rig support legs.

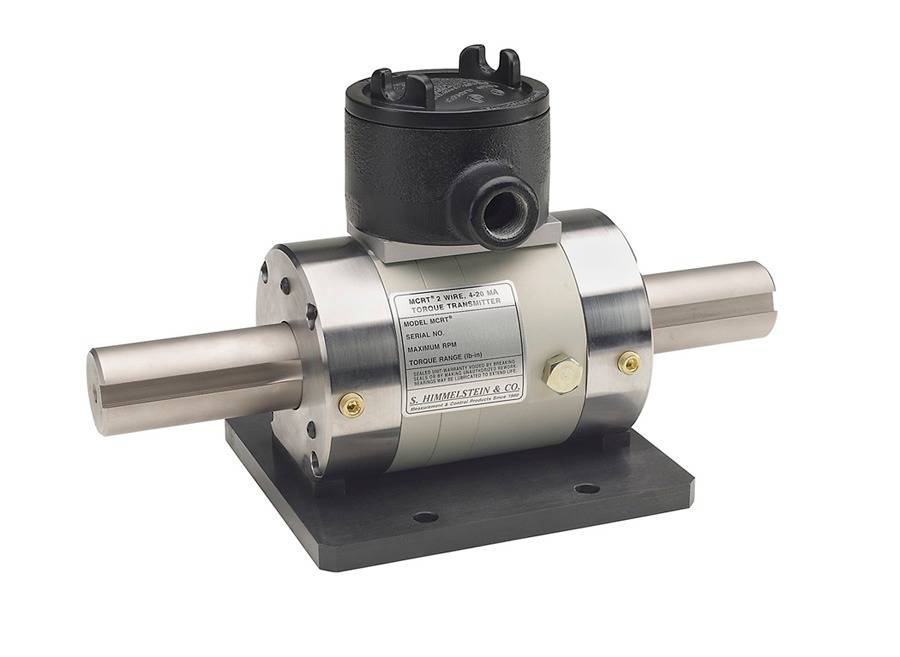

These MCRT® 39000X devices enable load monitoring during jacking  operations and help maintain stability on uneven and shifting sea beds and strong currents.

Mounted between the electric motors and pinion drive gearboxes on each leg’s truss, the system transmits data via a two-wire 4-20 mA loop to the Control Room. Because the MCRT® 39000X torque instrument measures the source load distribution directly it enables a
significantly faster response time than other systems. No need to  guess the location of stress on the rig’s structure. This advance
warning of any change or movement of weight helps prevent damage to  decks and jacking equipment.

Because of its extremely high immunity to noise interference, high safety margins, and maintenance-free design, the MCRT® 39000X has been certified by both ABS and DNV to become a standard for oil field  use. MCRT® 39000X torque transmitters measure bidirectional static (stall)  and dynamic shaft torque and speed (an option). A one piece stainless shaft carries bonded, foil strain gages.

They measure torque, and in combination with element design, cancel bending and thrust loads. Their rotary transmitters don't wear or generate noise. They are  immune to ambient noise, vibration, lubricants and other hostile environments.

There are no slip rings, brushes, radio transmitters and other noisy, limited-life elements. Unlike ferrite transformers, S. Himmelstein
ferrite-free MCRT® 39000X units aren’t susceptible to cracking and impact damage. Moreover, the robust, non-ferrite design suits these transmitters for hostile environments.
