Tech Files: SmartTouch Helps Detect Oil Pipe Flange Leaks

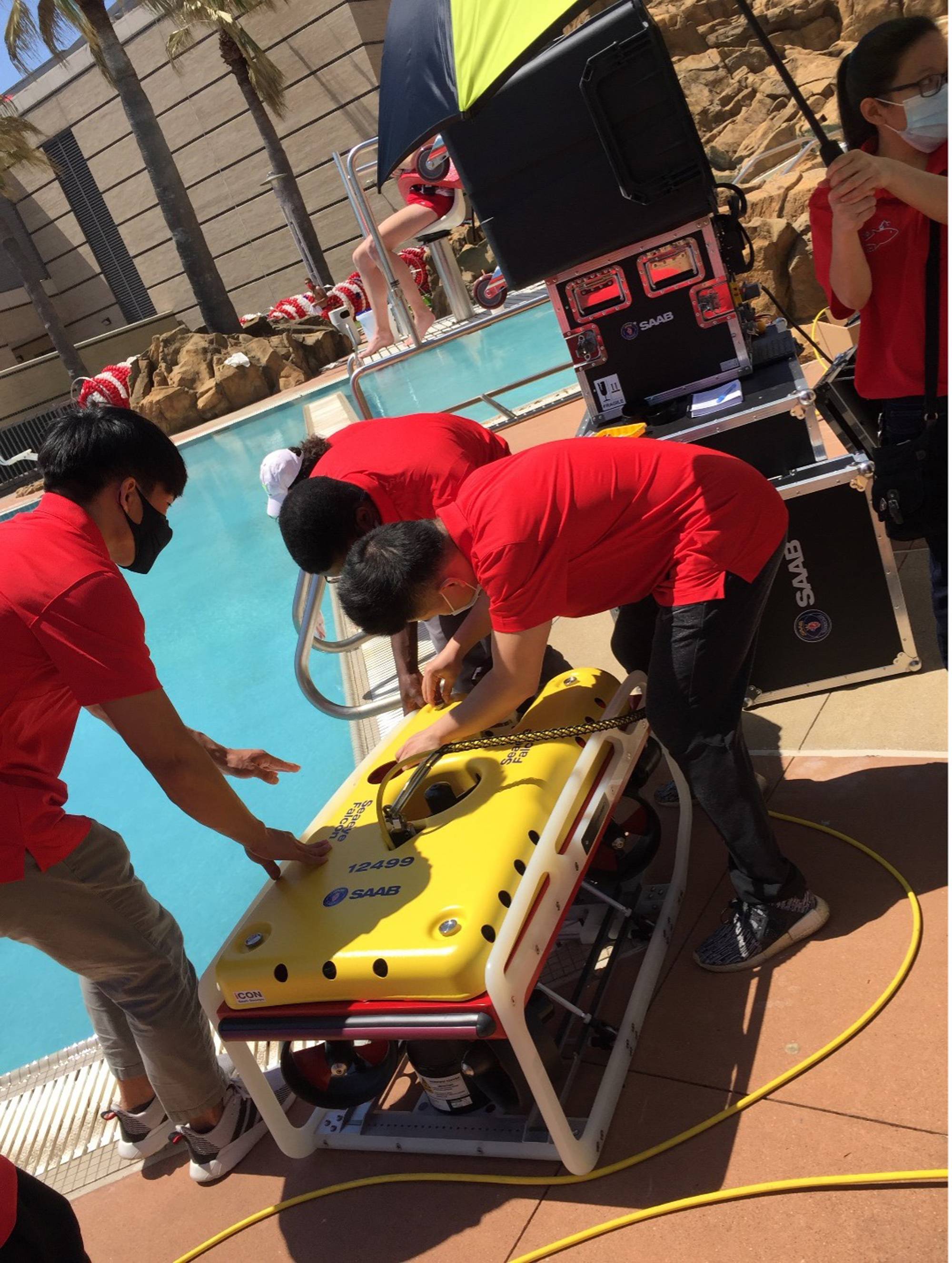

A breakthrough in leak risk detection at oil pipe flanges comes from research by the University of Houston using a Saab Seaeye Falcon robot as a development platform.

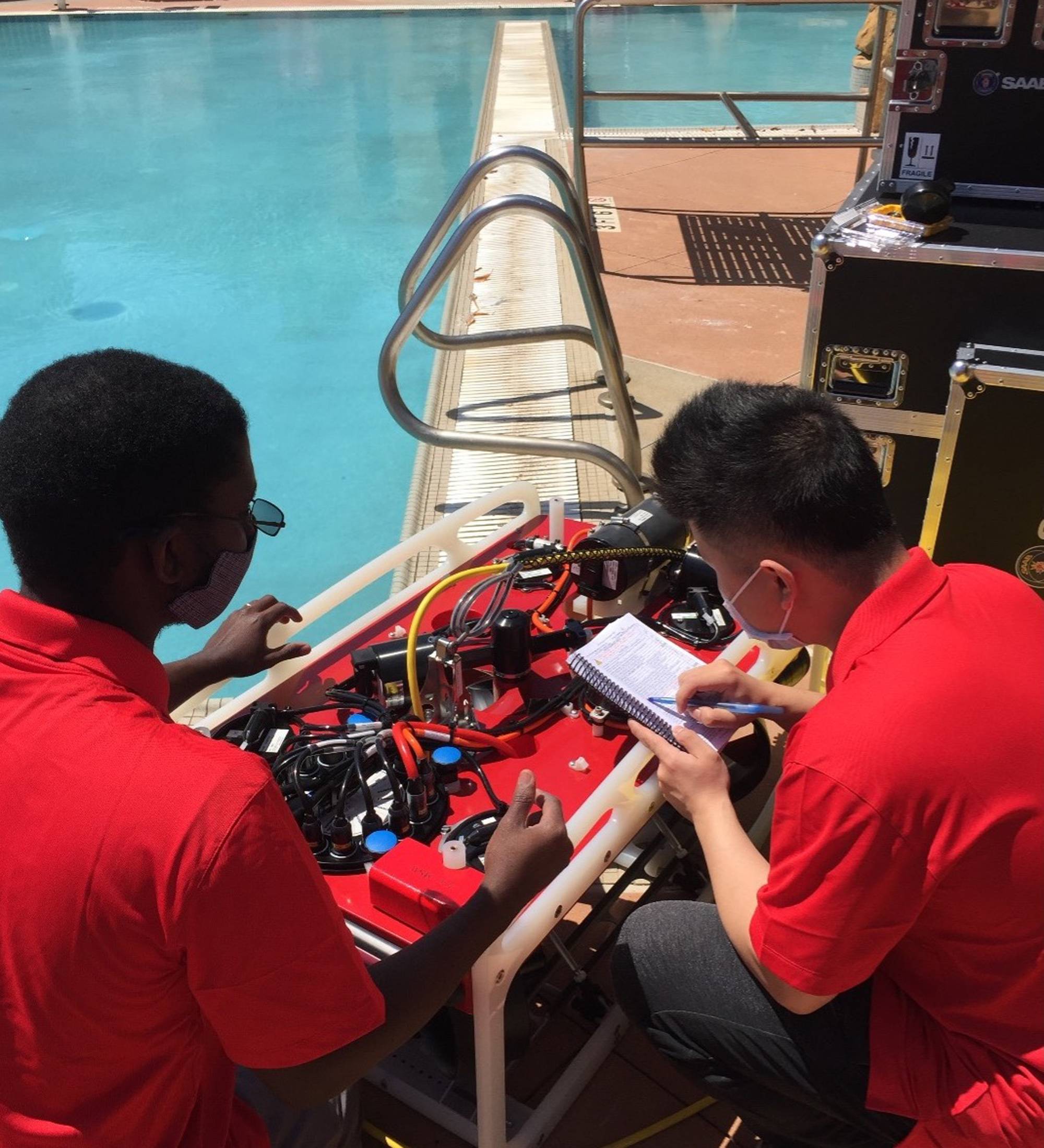

Called SmartTouch, the solution involves integrating innovative robotic manipulator controls into the Falcon that provide multiple stress wave sensors for touch-based inspection of bolted joints, along with the latest structural health monitoring and inspection technologies. Video cameras and scanning sonars are also integrated into the system.
Finding a time-efficient and cost-effective robotic solution to identifying flanges at risk was the University’s key objective as bolted flanges can loosen when ocean dynamics shift pipelines. The difficulty of locating flanges at risk makes their timely inspection key to the prevention of oil spills.
The research team led by Dr. Zheng Chen, assistant professor in Mechanical Engineering and director of bio-inspired robotics, together with Dr. Gangbing Song, professor in Mechanical Engineering, includes six PhD students.

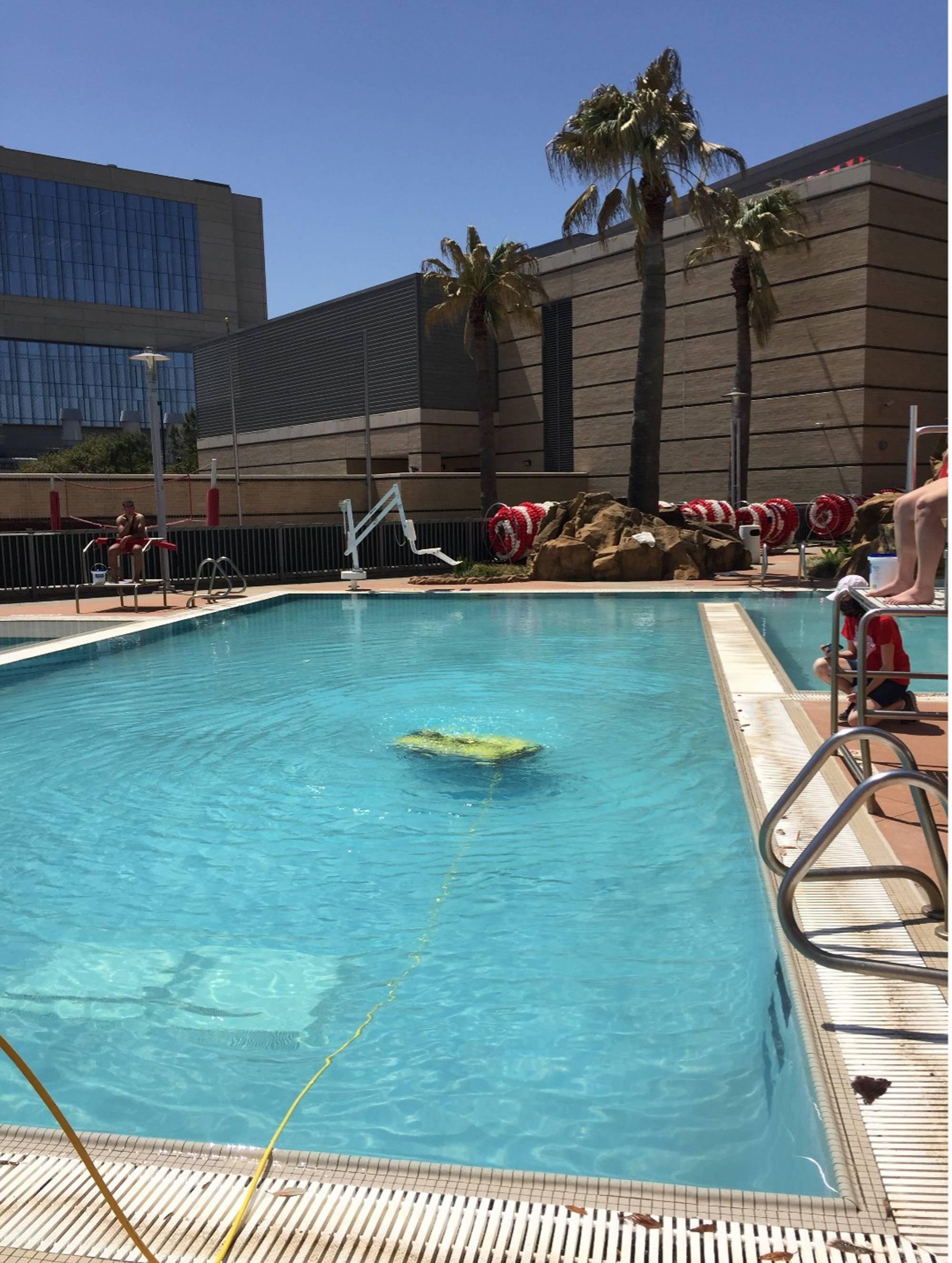

“The testing results have demonstrated the reliability and performance of the Falcon in meeting the needs of the SmartTouch underwater pipeline inspection system, says Dr. Chen.

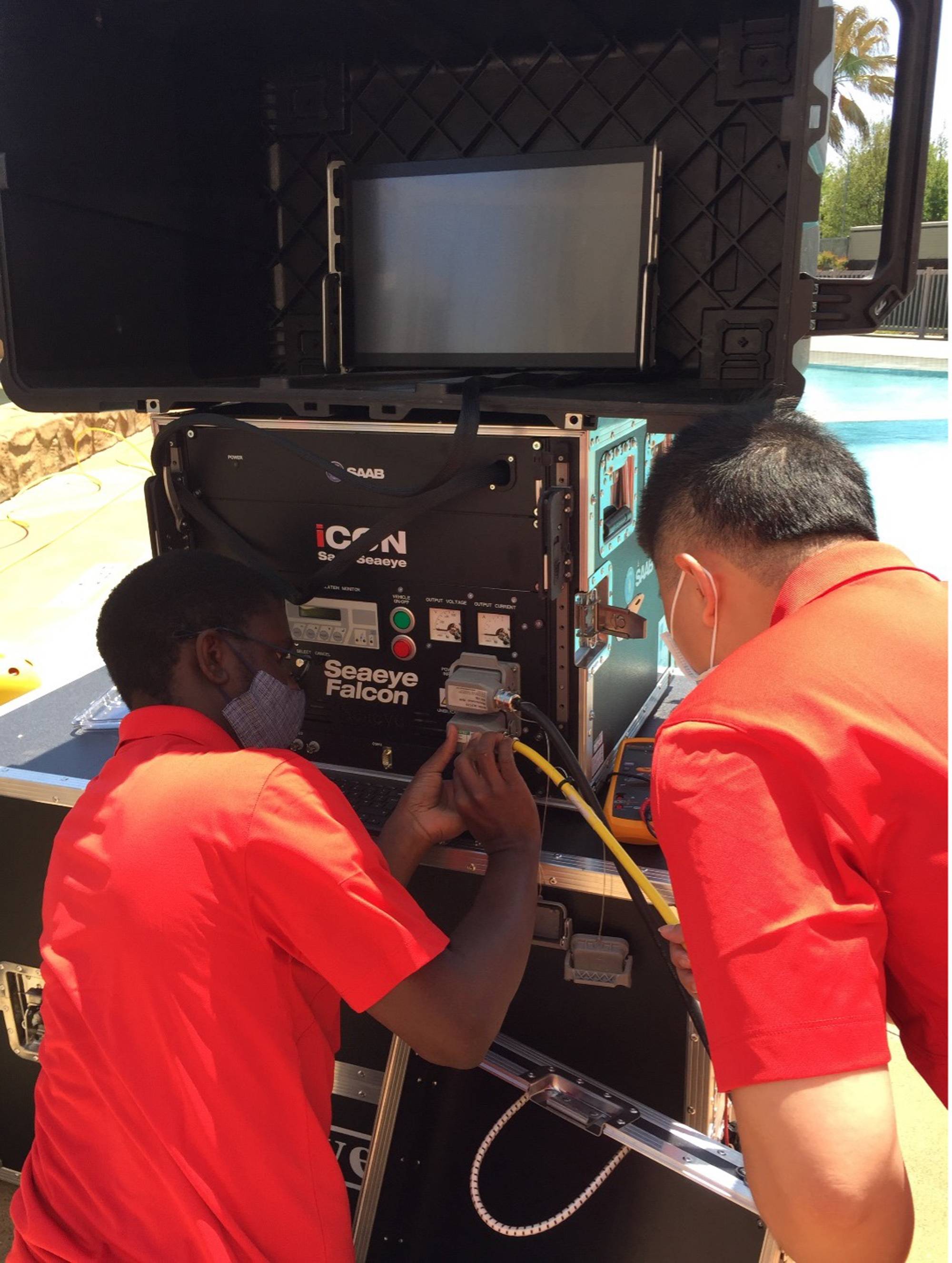

The ease of systems integration comes from the Falcon’s iCON intelligent distributed control architecture, which endows each device with its own microprocessor for individual control and offers a future-flexible concept that can readily adopt evolving technologies.
“The SmartTouch robotic system,” says Dr. Chen, “can totally automate and dramatically reduce the cost and risk of subsea inspection, leading to safer operations of offshore oil and gas pipelines.”
